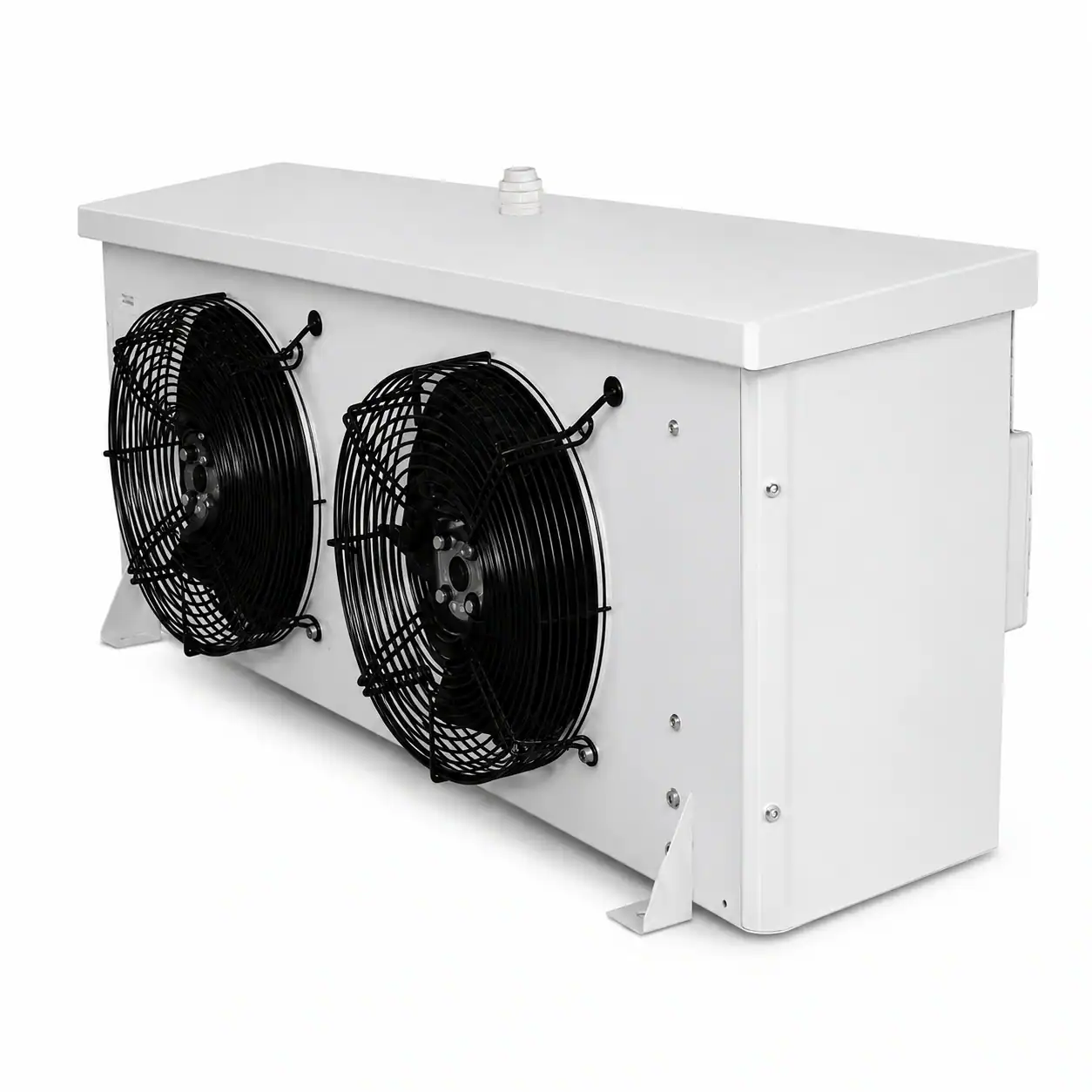

D Series Air Cooler

Professional evaporator solutions for cold storage, freezing and quick-freezing applications.

Series DL / DD / DJ

Temperature 0℃ to -25℃

Capacity 2.1KW ~ 117KW

Key Features 2.5MPa pressure tested, efficient defrosting

Request Quote Download Specs

Series Classification

Select different air cooler series according to cold room temperature requirements.

Around 0°C

DL Series

Suitable for fresh storage rooms such as vegetables, fruits, dairy products, and other chilled foods.

Around -18°C

DD Series

Suitable for frozen storage applications including meat, seafood, and frozen food preservation.

Around -25°C

DJ Series

Designed for quick-freezing rooms and ultra-low temperature refrigeration environments.

Key Features

Efficient Cooling

Optimized copper tube expansion for high heat exchange efficiency.

2.5MPa Pressure Tested

Reliable performance under demanding industrial conditions.

Corrosion Resistant

High-quality steel plate shell with long service life.

Wide Temperature Range

Suitable for fresh storage and quick freezing applications.

DL Series Technical Data

Model	Capacity(kw)	Area(m²)	Diameter	Air Vol	Fan Power	Volt	Coil(Kw)	Defrost(Kw)	Volt
DL-2.1/10	2.1	10	300	1400	1x90	380	1.3	0.65	220
DL-3.1/15	3.1	15	300	2800	2x90	380	2	1	220
DL-4.2/20	4.2	20	300	2800	2x90	380	2.2	1.1	220
DL-5.2/25A	5.2	25	300	4200	3x90	380	3.4	1.7	220
DL-5.2/25B	5.2	25	350	5600	2x150	380	2	1	220
DL-8.2/40	8.2	40	400	7600	2x190	380	2.6	1.3	220
DL-11.5/55	11.5	55	400	7600	2x190	380	2.6	1.3	220
DL-16.7/80	16.7	80	500	12000	2x550	380	4.8	1.6	220
DL-22/105	22	105	500	12000	2x550	380	5.1	1.7	220
DL-25.8/125	25.8	125	500	18000	3x550	380	7.2	2.4	220
DL-33.6/160	33.6	160	500	18000	3x550	380	7.2	2.4	220
DL-38.7/185	38.7	185	500	24000	4x550	380	8.4	2.8	220
DL-44/210	44	210	500	24000	4x550	380	9.6	3.2	220
DL-52.9/260A	52.9	260	500	24000	4x550	380	10.5	3.5	220
DL-52.9/260B	52.9	260	600	20000	2x1500	380	12	2	220
DL-67.2/330A	67.2	330	550	32000	4x750	380	10.5	3.5	220
DL-67.2/330B	67.2	330	600	30000	3x1500	380	14.4	2.4	220
DL-83.4/410	83.4	410	600	30000	3x1500	380	18	3	220
DL-95.5/475	95.5	475	650	39000	3x2200	380	19.2	3.2	220
DL-117/580	117	580	600	40000	4x1500	380	21	3.5	220

DD Series Technical Data

Model	Capacity(kw)	Area(m²)	Diameter	Air Vol	Fan Power	Volt	Coil(Kw)	Defrost(Kw)	Volt
DD-1.4/7	1.4	7	300	1400	1x90	380	1.3	0.65	220
DD-2.35/12	2.35	12	300	2800	2x90	380	2	1	220
DD-3/15	3	15	300	2800	2x90	380	2.2	1.1	220
DD-4/22A	4	22	300	4200	3x90	380	3.4	1.7	220
DD-4/22B	4	22	350	5600	2x150	380	2	1	220
DD-6/30	6	30	400	7600	2x190	380	2.6	1.3	220
DD-8/40	8	40	400	7600	2x190	380	2.6	1.3	220
DD-12/60	12	60	500	12000	2x550	380	4.8	1.6	220
DD-15.9/80	15.9	80	500	12000	2x550	380	5.1	1.7	220
DD-20/100	20	100	500	18000	3x550	380	7.2	2.4	220
DD-24/120	24	120	500	18000	3x550	380	7.2	2.4	220
DD-28.2/140	28.2	140	500	24000	4x550	380	8.4	2.8	220
DD-32.1/160	32.1	160	500	24000	4x550	380	9.6	3.2	220
DD-37.4/200A	37.4	200	500	24000	4x550	380	10.5	3.5	220
DD-37.4/200B	37.4	200	600	20000	2x1500	380	12	2	220
DD-46.8/250A	46.8	250	550	32000	4x750	380	10.5	3.5	220
DD-46.8/250B	46.8	250	600	30000	3x1500	380	14.4	2.4	220
DD-56.2/310B	56.2	310	600	30000	3x1500	380	18	3	220
DD-68.4/360B	68.4	360	600	40000	4x1500	380	21	3.5	220

DJ Series Technical Data

Model	Capacity(kw)	Area(m²)	Diameter	Air Vol	Fan Power	Volt	Coil(Kw)	Defrost(Kw)	Volt
DJ-1.32/8	1.32	8	300	1400	1x90	380	1.3	0.65	220
DJ-2.3/15A	2.3	15	300	2800	2x90	380	2	1	220
DJ-2.3/15B	2.3	15	350	5600	2x150	380	2	1	220
DJ-4/20	4	20	400	7600	2x190	380	2.6	1.3	220
DJ-5.1/30	5.1	30	400	7600	2x190	380	2.6	1.3	220
DJ-7.8/40	7.8	40	500	12000	2x550	380	4.8	1.6	220
DJ-9.8/55	9.8	55	500	12000	2x550	380	5.1	1.7	220
DJ-12.8/70	12.8	70	500	18000	3x550	380	7.2	2.4	220
DJ-15.7/85	15.7	85	500	18000	3x550	380	7.2	2.4	220
DJ-18.8/100	18.8	100	500	24000	4x550	380	8.4	2.8	220
DJ-21.6/115	21.6	115	500	24000	4x550	380	9.6	3.2	220
DJ-23.9/140A	23.9	140	500	24000	4x550	380	10.5	3.5	220
DJ-23.9/140B	23.9	140	600	20000	2x1500	380	12	2	220
DJ-29/170A	29	170	550	32000	4x750	380	10.5	3.5	220
DJ-29/170B	29	170	600	30000	3x1500	380	14.4	2.4	220
DJ-35.9/210B	35.9	210	600	30000	3x1500	380	18	3	220
DJ-47.5/250B	47.5	250	650	39000	3x2200	380	19.2	3.2	220
DJ-68.4/360B	68.4	360	600	40000	4x1500	380	21	3.5	220

Need a Custom Cooling Configuration?

Consult with our technical experts to receive a professional system design and competitive project quotation.

Request Your Quote Today
